LINEAR TUBE AUDIO ZOTL40 REFERENCE AMPLIFIER

Regular price $53,800.00 Sale

Availability: In Stock Unavailable

Product Type: Amplifiers

Vendor: Linear Tube Audio

SKU:

SPECIFICATIONS Sensitivity: 1.2V provides full output Output impedance: 1.6 ohms Input impedance: 50k 100V / 120V / 240V operation: Auto-switching Hum and noise: 94dB below full output (measured between 8Hz-60kHz +0/-0.5dB) Gain: 23db Power output with 4-ohm load: up to...

Add to Wishlist View Wishlist

Product Details
Product Reviews
Size Chart
Shipping & Returns

Product Details

SPECIFICATIONS

Sensitivity: 1.2V provides full output

Output impedance: 1.6 ohms

Input impedance: 50k

100V / 120V / 240V operation: Auto-switching

Hum and noise: 94dB below full output (measured between 8Hz-60kHz +0/-0.5dB)

Gain: 23db

Power output with 4-ohm load: up to 51W, 0.5% THD

Power output with 8-ohm load: up to 46W, 0.5% THD

Frequency response (8-ohm load): 8Hz to 50kHz, +0, -.5dB

Amplifier class: Push-pull Class AB

Net weight: 15 lbs

Dimensions: 17 inches (43 cm) wide, 5 inches (12.7 cm) tall, 13.875 inches (35.2 cm) deep

Finish: Aluminum case

Tube complement: two 12AX7s, two 12AU7s, & four Mullard NOS EL-34s - No adjustments – tubes are auto-biased

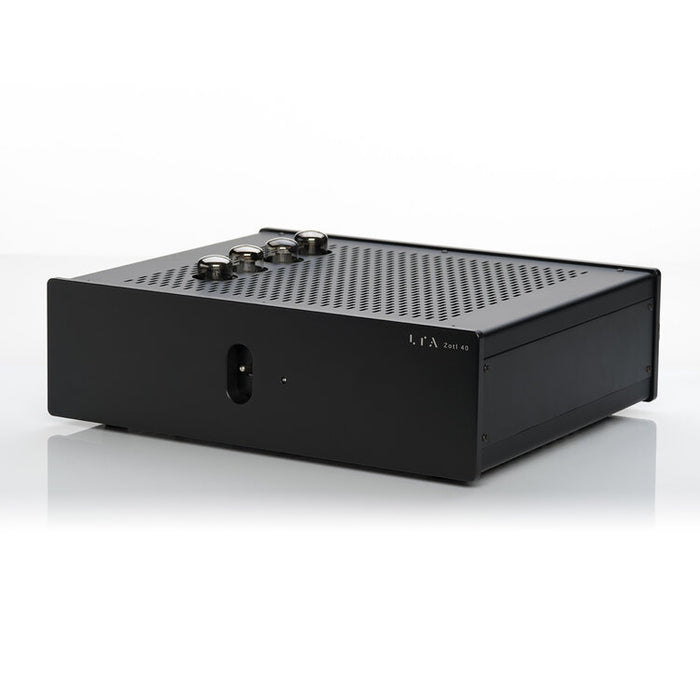

Linear Tube Audio is proud to present the ZOTL40 Reference+ amplifier. A worthy flagship and the most refined manifestation of David Berning’s ZOTL design.

The latest iteration of LTA's EL34-based amplifier, the ZOTL40 Reference includes a new chassis, component improvements, and is supplied with Mullard NOS EL34s that take this 50 watt-per-channel amp to a new level.

The ZOTL40 uses Mullard EL34 tubes, one of the best midrange tubes ever invented, so it has very solid midrange and authoritative punch.
