SPECIFICATIONS

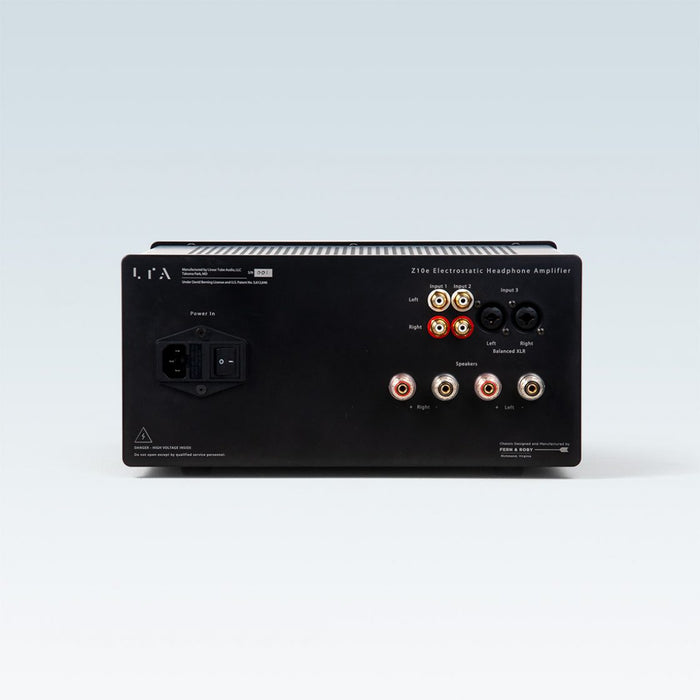

Inputs: 2 single-ended RCA stereo inputs, 1 input using two 3-pin combom XLR/TRS jacks

Speaker Output: 4 WBT copper speaker binding posts, banana or spade

Conventional Headphone Outputs: Low: Approx. .5 watt per channel @ 50 ohms, High: Approx. 2 watts per channel @ 50 ohms

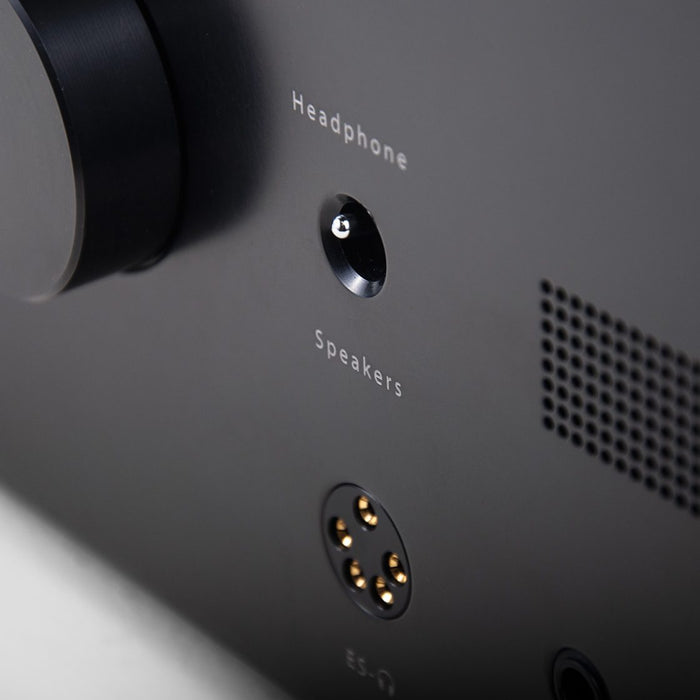

Electrostatic Headphone Output: 5 pin Stax interface, 580V bias

Front Panel Controls: Power switch, Input switch, volume control, and headphone / speaker switch

Remote Control: All front panel functions and configuration menu accessed using an aluminum Apple TV Remote

Volume Control: 100 stepped attenuator (smallest step 1/1000th of total value) using Vishay Dale 1% precision resistors

Output impedance: 1.2 ohms

Power Supply: Linear supply using a Belleson regulator and low ESR poly-organic capacitors

Input impedance: 47k

115VAC or 220VAC configured at factory - 50/60Hz - IEC receptacle

Hum and noise: 94dB below full output (measured at 20Hz-20kHz) • Carrier: -50dB (460kHz)

Power output with 4-ohm load: 13W, 0.5% THD

Power output with 8-ohm load: 12W, 0.5% THD

Frequency response (8-ohm load): 6Hz to 60kHz, +0, -.5dB

Amplifier class: Push-pull Class AB

Voltage gain (8-ohm load): 18dB

Net weight: Amplifier: 18 lbs./8.2 kg

Finish: Aluminum case

Tube complement: premium NOS two 12AT7s, four 12AU7s, and four EL84s or equivalent

Home Theater Function can select any input for fixed volume

Display: 16 Levels of brightness and programmable 7-second time out
