SPECIFICATIONS

Inputs: 4 single-ended Cardas RCA stereo, 1 balanced input using two 3-pin XLRs

Speaker Output: 4 WBT copper speaker binding posts

Headphone Outputs: Low: 220mW per channel @ 32 ohms, High: 2.6W per channel @ 32 ohms

Tape Monitor: 1 stereo tape monitor out, 1 stereo tape monitor in - both Cardas RCA

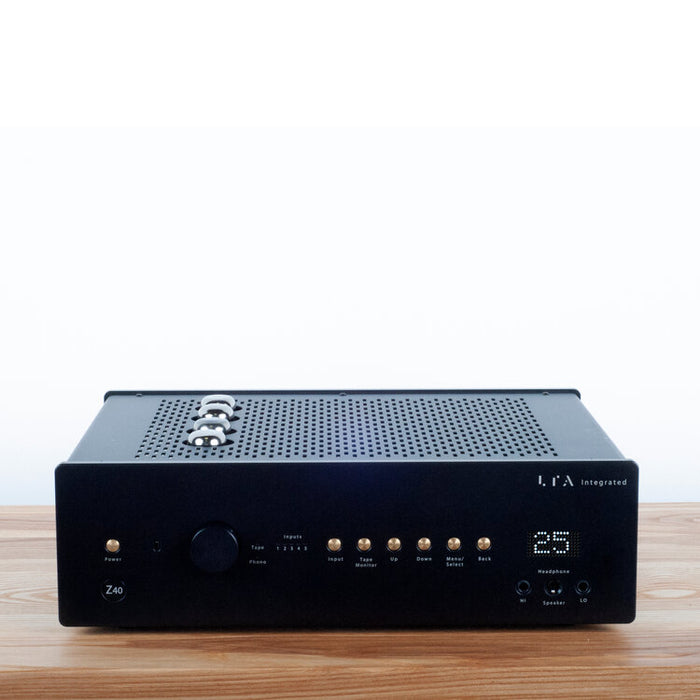

Front Panel Controls: 7 brass touch switches (power, input, tape monitor, up, down, menu/select, back), volume control, and headphone speaker switch

Remote Control: All front panel functions using paired Apple TV Remote

Volume Control: 100 stepped attenuator (smallest step 1/1000th of total value) using Vishay Dale 1% precision resistors

Output impedance: 1.2 ohms

Input impedance: 47k

100V / 120V / 240V operation: Auto-switching

Hum and noise: 94dB below full output (measured at 20Hz-20kHz)

Power output with 4-ohm load: 51W, 0.5% THD

Power output with 8-ohm load: 46W, 0.5% THD

Frequency response (8-ohm load): 6Hz to 60kHz, +0, -.5dB

Amplifier class: Push-pull Class AB

Voltage gain (8-ohm load): 23dB

Size: 17 inches wide, 5 1/8 inches tall, 16 inches deep (including connectors)

Net weight: Amplifier: 18 lbs./8.2 kg

Finish: Aluminum case

Tube complement: 2x 12AU7 preamp, 2x 12AX7, 2x 12AU7, 4x KT77

Home Theater Function can select any input for fixed volume

Display: 16 Levels of brightness and programmable 7-second time out
