TEAC HR-S101 High-Resolution System, TEAC - HeadfiAudio

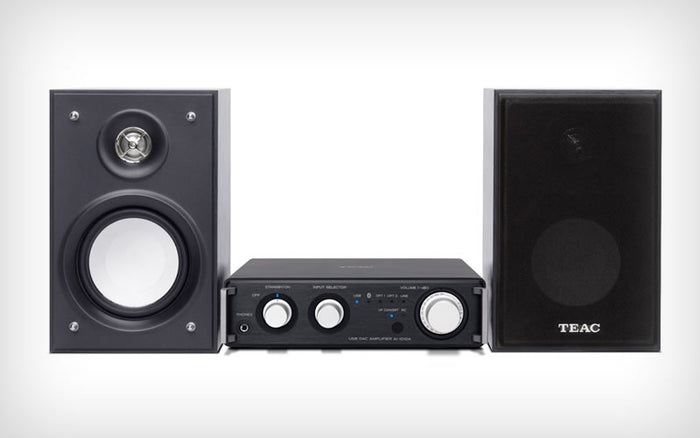

TEAC HR-S101 High-Resolution System

Regular price $2,680.00 $3,200.00 Sale

Availability: In Stock Unavailable

Product Type:

Vendor: TEAC

SKU:

DAC Section   D/A Converter BurrBrown PCM1796 Up-conversion Supported Bluetooth® Section   Bluetooth® version 3.0 Output Class 2 Supported Profile A2DP Supported Codec aptX®, SBC, AAC Output Power   Connector Screw-type (compatible with banana plug) Maximum Output Power 26W + 26W...


Product Details

DAC Section
D/A Converter BurrBrown PCM1796
Up-conversion Supported
Bluetooth® Section
Bluetooth® version 3.0
Output Class 2
Supported Profile A2DP
Supported Codec aptX®, SBC, AAC
Output Power
Connector Screw-type (compatible with banana plug)
Maximum Output Power 26W + 26W (4 ohms, 1kHz, 10% THD, JEITA)
Rated Output Power 20W + 20W (4 ohms, 1kHz, THD 1%, JEITA)
Supported Impedance 4 ohms to 8 ohms
Digital Audio Inputs
USB
Connector USB B-type (USB2.0)
Transmission Mode Asynchronous Mode
Supported File Format PCM
PCM 32k / 44.1k / 48k / 88.2k / 96k / 128k / 176.4k / 192kHz, 16bit/24bit
OPTICAL
Connectors Optical digital connector x2
Supported File Format PCM
PCM 32k / 44.1k / 48l/ 88.2k / 96kHz, 16bit/24bit
Input Level -24 to -14.5dBm peak
Analog Audio Input
Connector 1/8" (3.5mm) Stereo Mini Jack
Headphones Output
Connector 1/8" (3.5mm) Stereo Mini Jack
Output Power 100mW + 100mW (with 32 ohms load, 1kHz)
THD 0.03%
Subwoofer Preout
Connector RCA Pin Jack
Speaker section
Type 2-way Bass-reflex
Units
Tweeter 20mm Soft Dome
Woofer 70mm Cone
Max Inout Power 35 watts
Rated Input Power 25 watts
Impedance 6 ohms
Frequency Responce 75Hz - 25kHz
Sensitivity 87dB/W/m
Operation Power AC 120V, 60Hz (US/Canada)
Power Consumption 28W
Dimensions
(including protrusions)

Amplifier Unit 7.2"(W) x 2.1"(H) x 7.5"(D)
182(W) x 53(H) x 191(D) mm
Speaker 4.6"(W) x 7.2"(H) x 6.6"(D)
116(W) x 182(H) x 167(D) mm
