Astell & Kern AK240SS Stainless Steel DAC Digital Music & Media Player, Astell & Kern - HeadfiAudio

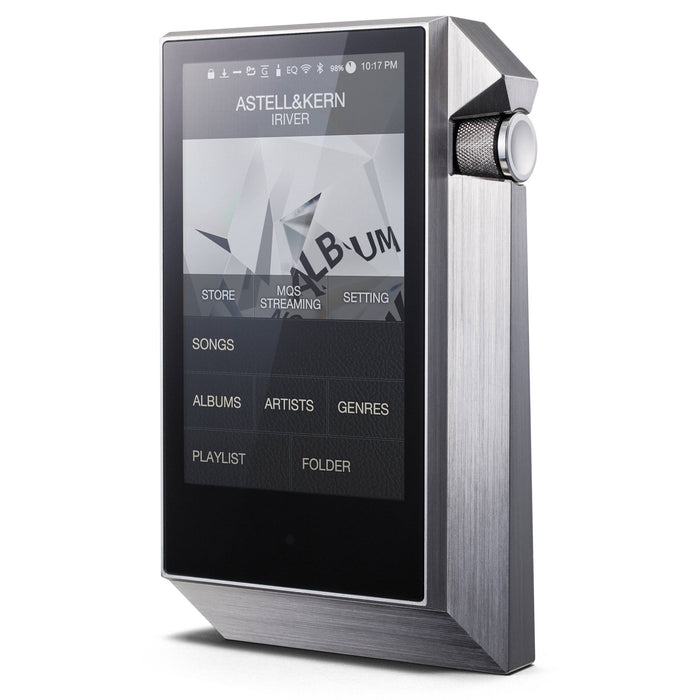

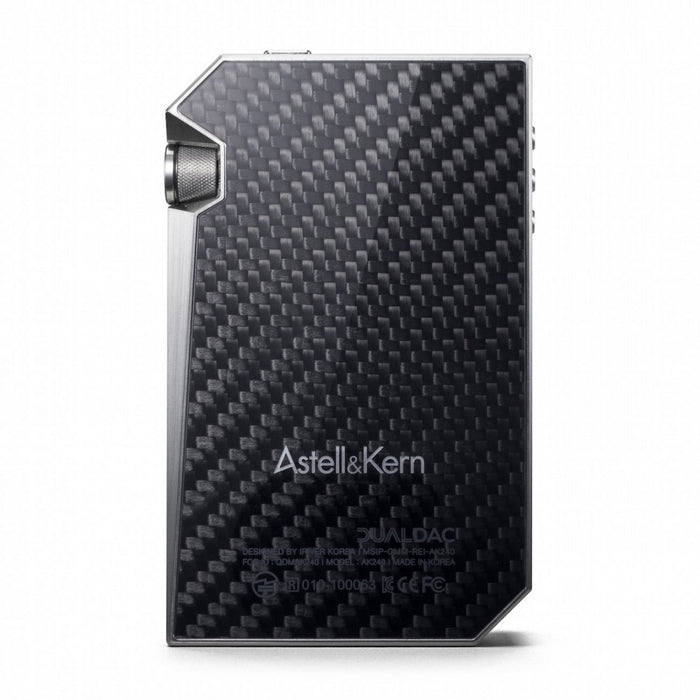

Astell & Kern AK240SS Stainless Steel DAC Digital Music & Media Player

Regular price $16,980.00 $16,980.00 Sale

Availability: In Stock Unavailable

Product Type: Players

Vendor: Astell & Kern

SKU:

DAC: Cirrus Logic CS4398 x2 (Dual DAC) Decoding: Support up to 24bit/192kHz Bit to Bit Decoding, DSD64/128 Input: USB Micro-B input (for charging & data transfer (PC & MAC)) / Connection Mode : MTP (Media Device) Outputs: PHONES (3.5mm) / Optical...


Product Details

DAC:

Cirrus Logic CS4398 x2 (Dual DAC)

Decoding:

Support up to 24bit/192kHz Bit to Bit Decoding, DSD64/128

Input:

USB Micro-B input (for charging & data transfer (PC & MAC)) / Connection Mode : MTP (Media Device)

Outputs:

PHONES (3.5mm) / Optical Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported)

Wi-Fi:

802.11 b/g/n (2.4GHz)

Bluetooth:

V4.0

Body Color:

Stainless

Body Material:

Stainless Steel

Dimension:

 66(W) x 107(H) x 17.5(D) (mm)

3.3 inch WVGA (480 x 800) AMOLED touch screen

Weight:

 271g

Supported Audio Format:

 WAV, FLAC, WMA, MP3, OGG, APE(Normal, High, Fast), AAC, ALAC, AIFF, DFF, DSF, FLAC, WAV, ALAC, AIFF : 8kHz ~ 192kHz (8/16/24bits per Sample) / DSD Native : DSD64 (1bit 2.8MHz), Stereo / DSD128 (1bit 5.6MHz), Stereo

Unbalance 2.1Vrms / Balance 2.3Vrms (Condition No Load)

Frequency Response:

 ±0.023dB (Condition: 20Hz~20kHz) Unbalance & Balance / ±0.3dB (Condition: 10Hz~70kHz) Unbalance & Balance

Signal to Noise Ratio:

 116dB @ 1kHz, Unbalance / 117dB @ 1kHz, Balance

Crosstalk:

 130dB @ 1kHz, Unbalance / 135dB @ 1kHz, Balance

THD+N:

 0.0007% @ 1kHz, Unbalance / 0.0005% @ 1kHz, Balance

IMD SMPTE:

0.0004% 800Hz 10kHz(4:1) Unbalance / 0.0003% 800Hz 10kHz(4:1) Balance

Output Impedance:

Balanced out 2.5mm (1ohm) / PHONES 3.5mm (2ohm)

Clock Jitter:

50ps (Typ)

Battery Capacity:

3,250mAh 3.7V Li-Polymer Battery

Memory:

Built-in 256GB [NAND], External  1 x microSD (Max 128GB)

Supported OS:

Windows XP, Windows 7,8 (32/64bit), MAC OS X 10.7 and up
