Spec description

CD section
Supported disc types	CD, CD-R, CD-RW (12cm, 8cm)
Playback file format	CD-DA
Sampling frequency	44.1 kHz
Quantization bit depth	16bit
Digital audio inputs
Connector
COAXIAL	RCA × 1 (0.5Vp-p/75Ω)
OPTICAL	Square × 2 (-24.0 to -14.5dBmpeak)
Input signal formats
DSD(DoP)	2.8MHz
Linear PCM	32 to 192kHz, 16bit/24bit
Network inputs
Connector
LAN	1000BASE-T
USB	USB type A (Class 2.0 compliant)
Supported equipment	USB flash drives, USB hard disks, etc. (single-partition FAT32, NTFS, EXT2/3 only)
Input signal formats
DSD	2.8/5.6 MHz
PCM	44.1 to 384kHz, 16 to 32bit * 352.8kHz, 384kHz and 32-bit formats downconverted before playback.
Supported file formats
DSD	DSF, DSDIFF(DFF)
PCM	FLAC, Apple Lossless(ALAC), WAV, AIFF, MP3, AAC(m4a container)
Bluetooth® section
Bluetooth® version	4.0
Output class	Class 2 (Unobstructed transmission range* : About 10m )
Supported profiles	A2DP, AVRCP
Supported A2DP codecs	SBC, AAC, Qualcomm® aptX™, LDAC
A2DP content protection	SCMS-T
Maximum number of saved pairings	8
Analogue audio inputs
Connector	RCA × 1 pair
Input impedance	47kΩ
Input sensitivity	30mV
Amplifier
Max Output Power
When power supply voltage is 230V.	230W + 230W (4Ω, 1kHz, THD 10%) 130W + 130W (8Ω, 1kHz, THD 10%)
When power supply voltage is 120V.	210W + 210W (4Ω, 1kHz, THD 10%) 130W + 130W (8Ω, 1kHz, THD 10%)
Rated Output Power	100W + 100W (4Ω, 1kHz, THD 0.07%) 60W + 60W (8Ω, 1kHz, THD 0.07%)
Compatible speaker impedance	4Ω to 8Ω
Total harmonic distortion	0.008%(1KHz, 8Ω, 50W)
S/N ratio	LINE IN 110dB (IHF-A/LPF 20kHz 1kHz 2V) input)
Frequency response	5Hz to 100kHz +1/-3dB
Headphone amplifier section
Connector	3.5mm (1/8") stereo mini jack × 1 (4-pole separate ground connection supported)
Practical maximum output	500mW + 500mW (into 32Ω load)
Compatible impedance load	16 to 600Ω
Power supply
Europe	AC 220 - 240V (50/60Hz)
U.S.A/Canada	AC 120V (60Hz)
Power Consumption
Europe	130W
U.S.A/Canada	120W
Standby power consumption	0.5W or less
Dimensions	442(W) × 152(H) × 345(D) mm (excluding protrusions)
Net Weight	About 13.4kg
Operating Temerature	+5℃ to +35℃
Operating humidity range	5% to 85% (without condensation)
Storage Temerature	-20 to +55˚C
Accessory	Power cord × 1, Remote control (RC-1328) × 1, Remote control batteries (AAA) × 2, Owner's Manual (including warranty) × 1, Cushioning felt for feet × 3

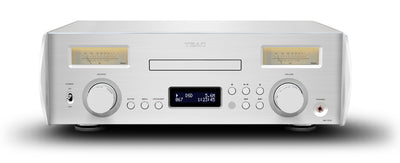

TEAC Network CD player/Integrated amplifier NR-7CD
