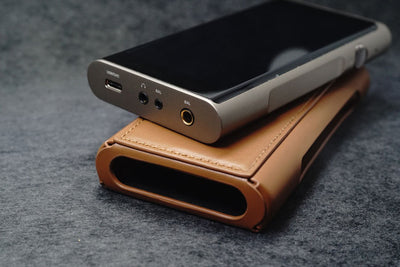

Features and Configuration For Shanling M6 Pro:-

> High-Performance Dual DAC Setup by AKM, AK4497EQ x 2.

>PCM Decoding up to 32-Bit/768kHz, DSD up to DSD256 Natively.

>Lightning Fast Snapdragon 430 Processor.

>4GB RAM+32GB ROM.

>An upgraded circuit including 4 Low pass filters OPA1622+ADA4610-2 + BUF634 x 2, providing a fully balanced output.

>Open Android Operating System.

>Three Output Ports: 2.5mm Balanced, 4.4mm balanced, and 3.5mm single-ended.

>Three Mode Hardware Gain Switch: Low Gain/ High Gain/ Ultra High Gain Mode.

>Crisp 720P Display

>Two-Way Bluetooth V4.2 support with Hi-res codes support(Two-way supports LDAC, SBC, only Transmission mode supports: AptX, AptX HD, HWA).

>Battery Life: Up to 13 hours(Single Ended Single DAC Mode).

Up to 9 hours(Single Ended Dual DAC Mode).

Up to 8 hours(Balanced Mode Dual DAC).

>Dual Band Wi-Fi support:- 2.4GHz/5GHz.

>Weight: 244 grams.

>TF Memory Card supported up to 512gb capacity.

>4000mAh Battery which supports QC3.0 quick charging.

Output Power:-

>Output: 19mW @ 32Ω (low gain), 47mW @ 32Ω (high gain), 200mW @ 32Ω (ultra high gain).

>Signal-to-noise ratio: 121 dB.

>Dynamic range: 121dB.

>Channel separation : 75 dB (32 Ω).

>THD + N: <0.0009%.

>Output impedance: <1Ω.

>Output: 56mW @ 32Ω (low gain) 141mW @ 32Ω (high gain) 600mW @ 32Ω (ultra high gain).

>Signal to noise ratio: 123 dB.

>Channel separation: 110 dB (32 Ω).

>Dynamic range : 123 dB.

>THD + N: <0.0011%.

>Output impedance: <2Ω.
