SPECIFICATIONS

Sensitivity: 1.2V provides full output

Output impedance: 1.6 ohms

Input impedance: 50k

100V / 120V / 240V operation: Auto-switching

Hum and noise: 94dB below full output (measured between 8Hz-60kHz +0/-0.5dB)

Gain: 23db

Power output with 4-ohm load: up to 51W, 0.5% THD

Power output with 8-ohm load: up to 46W, 0.5% THD

Frequency response (8-ohm load): 8Hz to 50kHz, +0, -.5dB

Amplifier class: Push-pull Class AB

Net weight: 15 lbs

Dimensions: 17 inches (43 cm) wide, 5 inches (12.7 cm) tall, 13.875 inches (35.2 cm) deep

Finish: Aluminum case

Tube complement: two 12AX7s, two 12AU7s, & four Mullard NOS EL-34s - No adjustments – tubes are auto-biased

Linear Tube Audio is proud to present the ZOTL40 Reference+ amplifier. A worthy flagship and the most refined manifestation of David Berning’s ZOTL design.

The latest iteration of LTA's EL34-based amplifier, the ZOTL40 Reference includes a new chassis, component improvements, and is supplied with Mullard NOS EL34s that take this 50 watt-per-channel amp to a new level.

The ZOTL40 uses Mullard EL34 tubes, one of the best midrange tubes ever invented, so it has very solid midrange and authoritative punch.

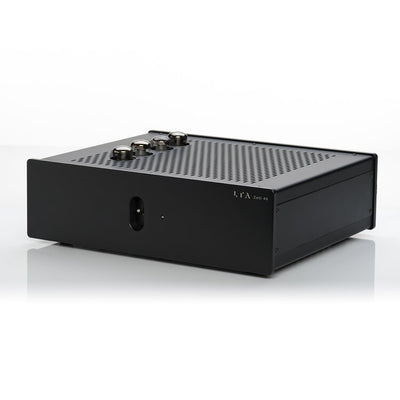

LINEAR TUBE AUDIO ZOTL40 REFERENCE AMPLIFIER
