The latest amplifier design by David Berning. Striking a balance between triode and pentode mode, the new ZOTL Ultralinear+ amp provides the unique advantages of each while maintaining all the benefits of the ZOTL circuitry.

The ZOTL Ultralinear+ amplifier delivers uncolored detail and realism without sacrificing natural mids and powerful, controlled bass. The ZOTL Ultralinear+ is our most detailed and refined amp. Many listeners compare the presentation to SET amps, while offering much more power.

Listeners enjoy the less forward, distortion-free presentation that is “more pleasing to listen to” the Ultralinear offers.

SPECIFICATIONS

Inputs: One pair L & R Cardas RCA

Outputs: One set of stereo WBT speaker binding posts

Amplifier class: Push-pull class AB

Power output: 20 watts channel 8 ohms

Sensitivity: 1.2V RMS for 20 watts output

Frequency response: 8hz to 60khz - +0, -.5db

Output impedance: 1.6 ohms

Input impedance: 50k

100V / 120V / 240V operation: Auto-switching

Hum and noise: 94dB below full output (measured between 20Hz-20kHz)

Gain: 21db

Stereo/Mono: Switchable Stereo-Mono

Dimensions: 17 inches (43 cm) wide, 5 inches (12.7 cm) tall, 13.875 inches (35.2 cm) deep

Weight: 17.5 lbs or 7.9 kg

Tube complement: Two 12AU7 and two 12AX7 input tubes, four 17JN6 power tubes - Autobias for all tubes. All tubes NOS.

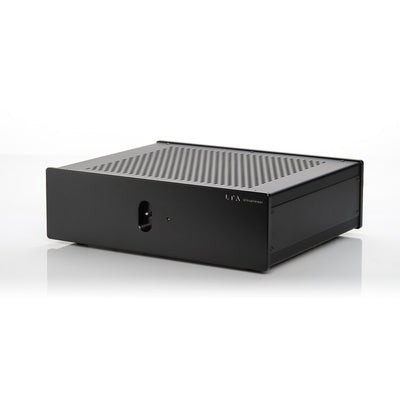

LINEAR TUBE AUDIO ZOTL ULTRALINEAR AMPLIFIER
